Pleistocene Sea Level Maps

This website provides maps published in 2000 and 2006 that depict sea level change on the Sunda and Sahul Continental Shelves during the Pleistocene.

Copyrights on the maps presented here belong to The Field Museum of Natural History (© 2000 Field Museum of Natural History, Chicago, Illinois USA and © 2006 Field Museum of Natural History, Chicago, Illinois USA). Black and white or color versions of the maps that appear here may be downloaded for non-commercial scholarly, scientific or educational purposes. Any commercial use of the illustrations is expressly prohibited without the written permission of the first author. The maps may be downloaded, copied, modified, and re-published for non-commercial purposes as long as The Field Museum of Natural History is acknowledged and the original publication source is cited. The two publications are as follows:

Voris, H. K. 2000. Maps of Pleistocene Sea Levels in South East Asia: Shorelines, River Systems, Time Durations. Journal of Biogeography 27:1153-1167.

Sathiamurthy, E. and Voris, H. K. 2006. Maps of Holocene Sea Level Transgression and Submerged Lakes on the Sunda Shelf. The Natural History Journal of Chulalongkorn University. Supplement 2:1-43.



The following maps were published in 2000 and they estimate the areas of exposed land in the Indo-Australian region during periods of 17,000, 150,000, and 250,000 years before present (YBP). The ancient shorelines are based on present day depth contours of 10, 20, 30, 40, 50, 75, 100, and 120 m. On the maps depicting shorelines at 75, 100, and 120 m below present levels (BPL), the major Pleistocene river systems of the Sunda and Sahul shelves are depicted.




Maps Published in 2000(black & white TIFF images)  Click on figure name to view and/or download map.

Figure 1(a)     120 m contour with rivers.
Figure 1(b)     100 m contour with rivers.
Figure 1(c)     75 m contour with rivers.
Figure 1(d)     50 m contour without rivers.
Figure 1(e)     40 m contour without rivers.
Figure 1(f)     30 m contour without rivers.
Figure 1(g)     20 m contour without rivers.
Figure 1(h)     10 m contour without rivers.

For the following unpublished black and white maps or colorized versions of the published maps in jpg format, please contact Harold Voris:

  • Base map. 0 m contour (today) with rivers.
  • Base map. 0 m contour (today) without rivers.
  • 120 m contour (Figure 1(a) without rivers.
  • 100 m contour (Figure 1(b) without rivers.





The following maps published in 2006 depict Holocene sea level transgressions on the Sunda Shelf in Southeast Asia. The present-day topography of the Sunda Shelf have been detected through spatial analysis of the Sunda Shelf using the Digital Elevation Model (DEM) developed from the ETOPO2 Global 2’ Elevation data.  Please see publication (pdf available here) for further details regarding methods.







Maps Published in 2006 (full-color TIFF images)  Click on figure name to view and/or download map.



Figure 2        Sunda Shelf: LGM, 21 ka BP; -116 m below present-day sea level

Figure 3        Sunda Shelf: 18.02 ka BP; -110 m below present-day sea level

Figure 4        Sunda Shelf: 16.8 ka BP; -105 m below present-day sea level

Figure 5        Sunda Shelf: 15.58 ka BP; -100 m below present-day sea level

Figure 6        Sunda Shelf: 14.58 ka BP; -95 m below present-day sea level

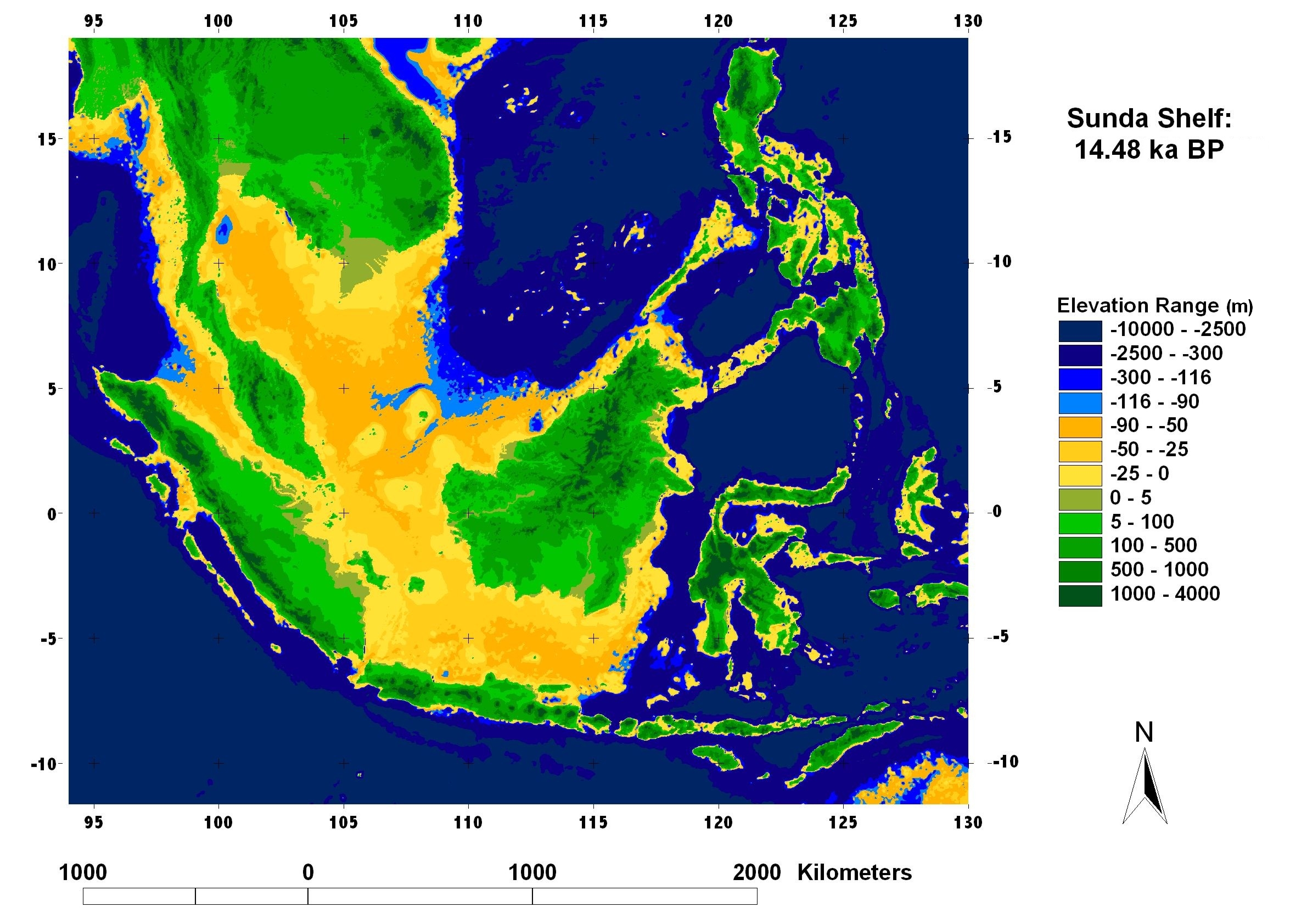

Figure 7        Sunda Shelf: 14.48 ka BP; -90 m below present-day sea level

Figure 8        Sunda Shelf: 14.39 ka BP; -85 m below present-day sea level

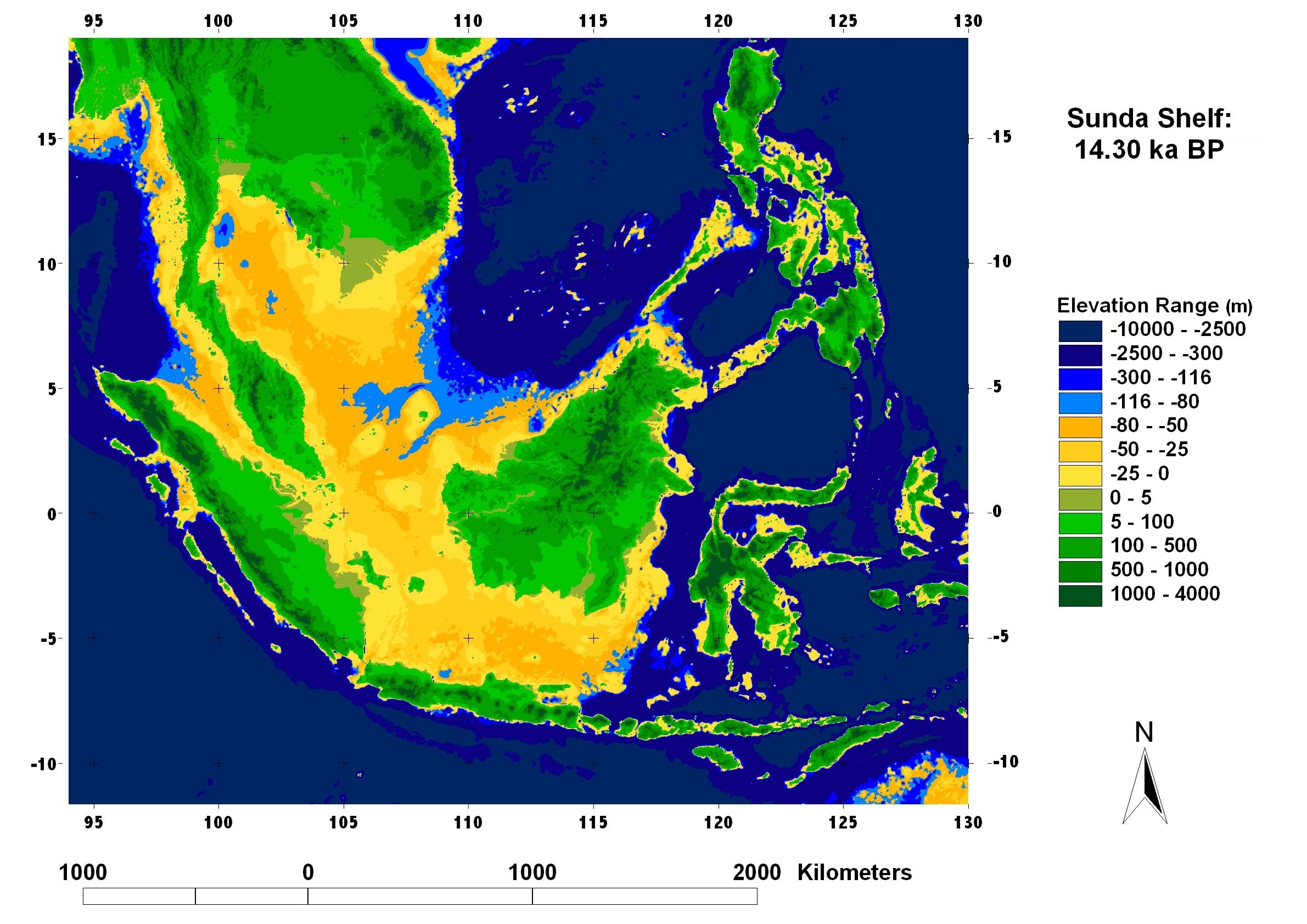

Figure 9        Sunda Shelf: 14.30 ka BP; -80 m below present-day sea level

Figure 10      Sunda Shelf: 13.92 ka BP; -75 m below present-day sea level

Figure 11      Sunda Shelf: 13.54 ka BP; -70 m below present-day sea level

Figure 12      Sunda Shelf: 13.17 ka BP; -65 m below present-day sea level

Figure 13      Sunda Shelf: 12.75 ka BP; -60 m below present-day sea level

Figure 14      Sunda Shelf: 12.31 ka BP; -55 m below present-day sea level

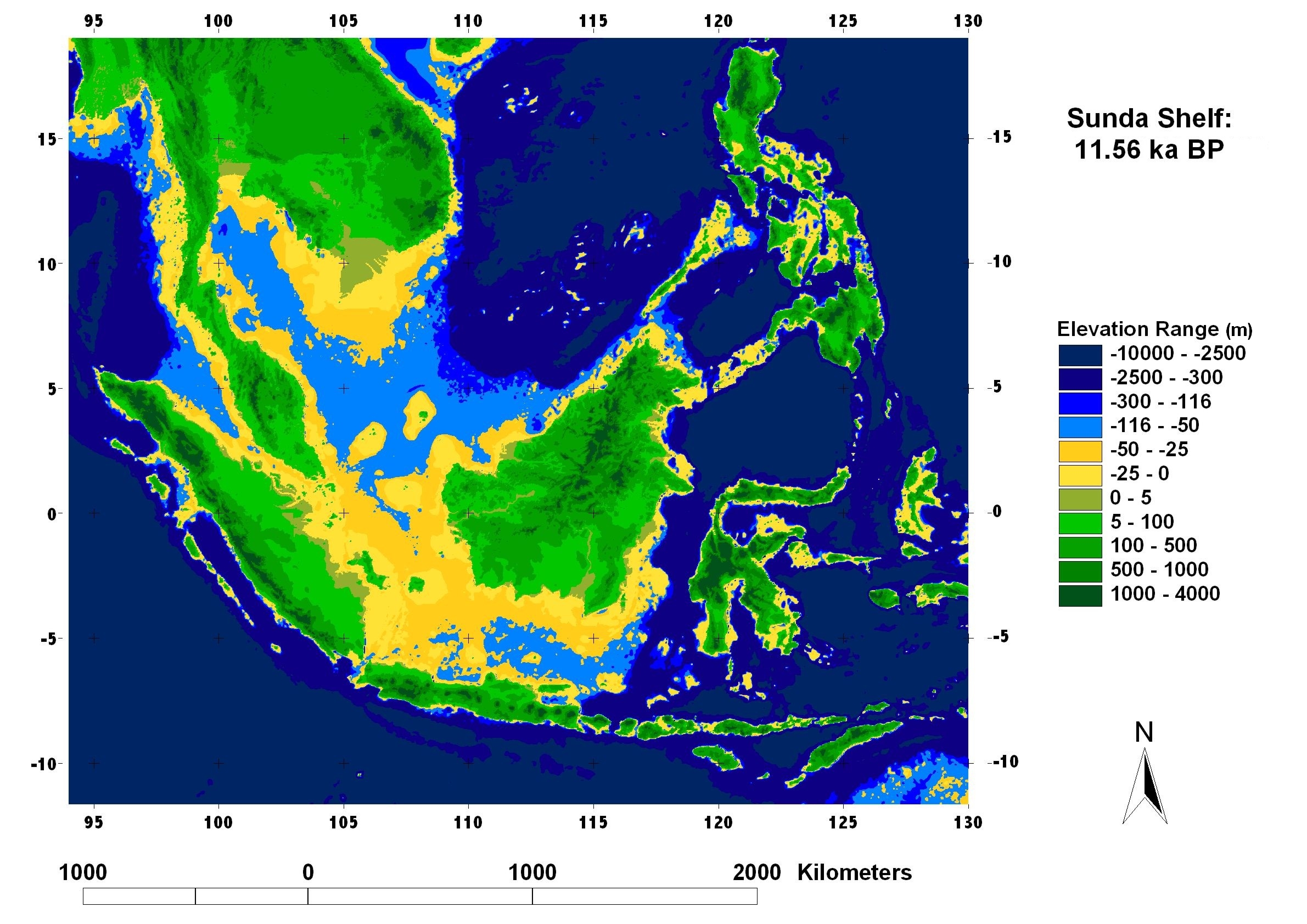

Figure 15      Sunda Shelf: 11.56 ka BP; -50 m below present-day sea level

Figure 16      Sunda Shelf: 11.23 ka BP; -45 m below present-day sea level

Figure 17      Sunda Shelf: 10.88 ka BP; -40 m below present-day sea level

Figure 18      Sunda Shelf: 10.55 ka BP; -35 m below present-day sea level

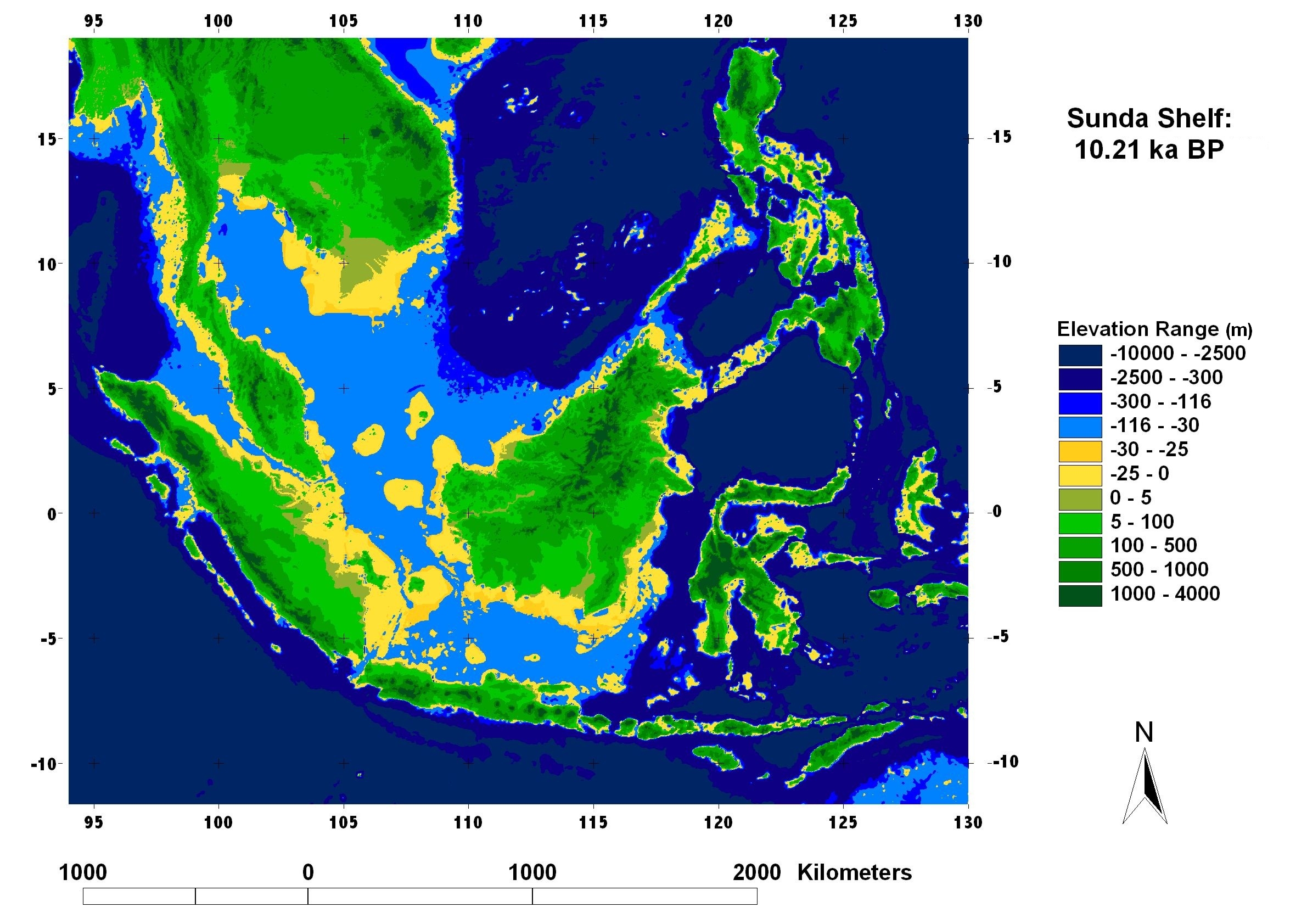

Figure 19      Sunda Shelf: 10.21 ka BP; -30 m below present-day sea level

Figure 20      Sunda Shelf: 9.87 ka BP; -25 m below present-day sea level

Figure 21      Sunda Shelf: 9.53 ka BP; -20 m below present-day sea level

Figure 22      Sunda Shelf: 9.19 ka BP; -15 m below present-day sea level

Figure 23      Sunda Shelf: 8.38 ka BP; -10 m below present-day sea level

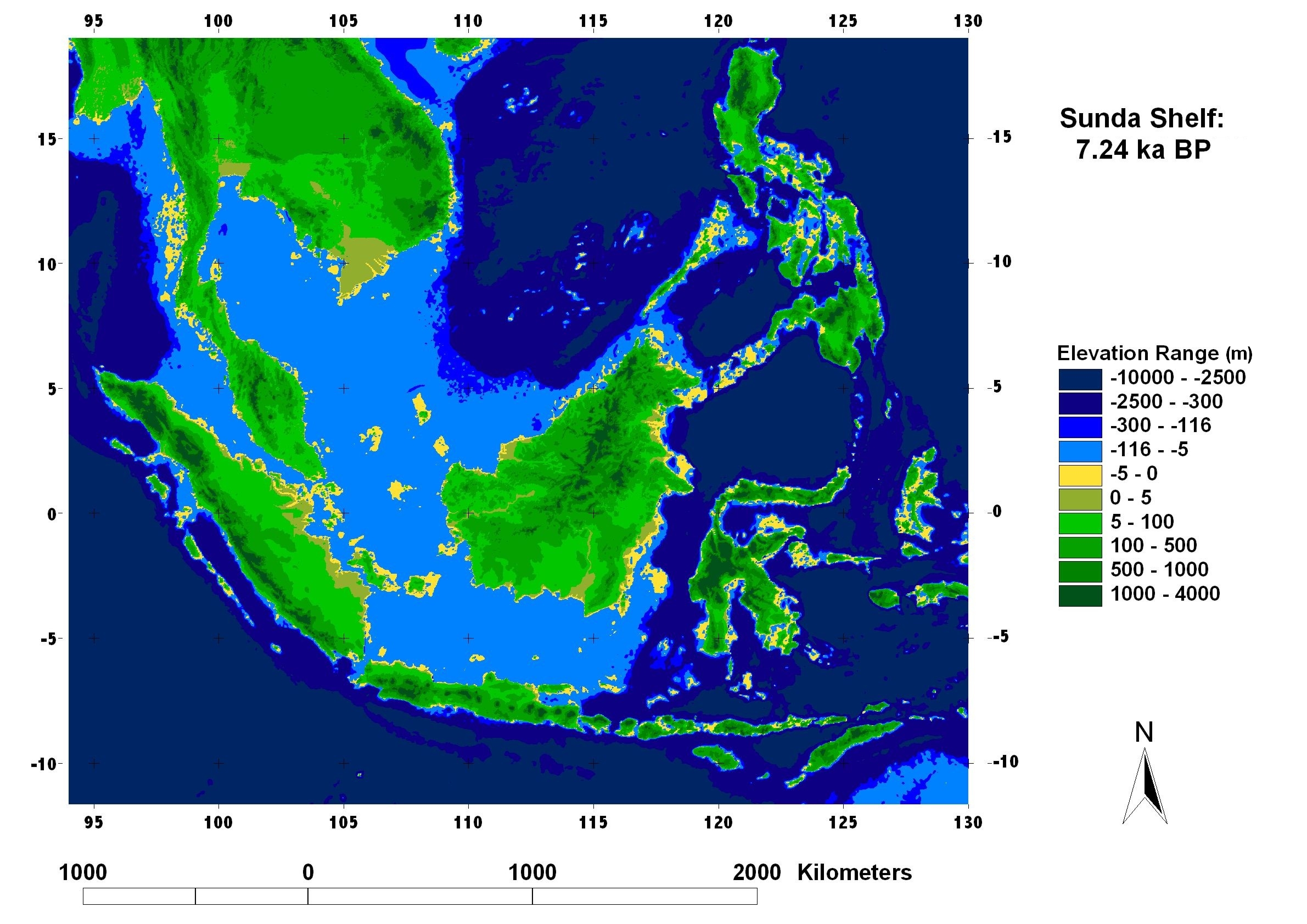

Figure 24      Sunda Shelf: 7.24 ka BP; -5 m below present-day sea level

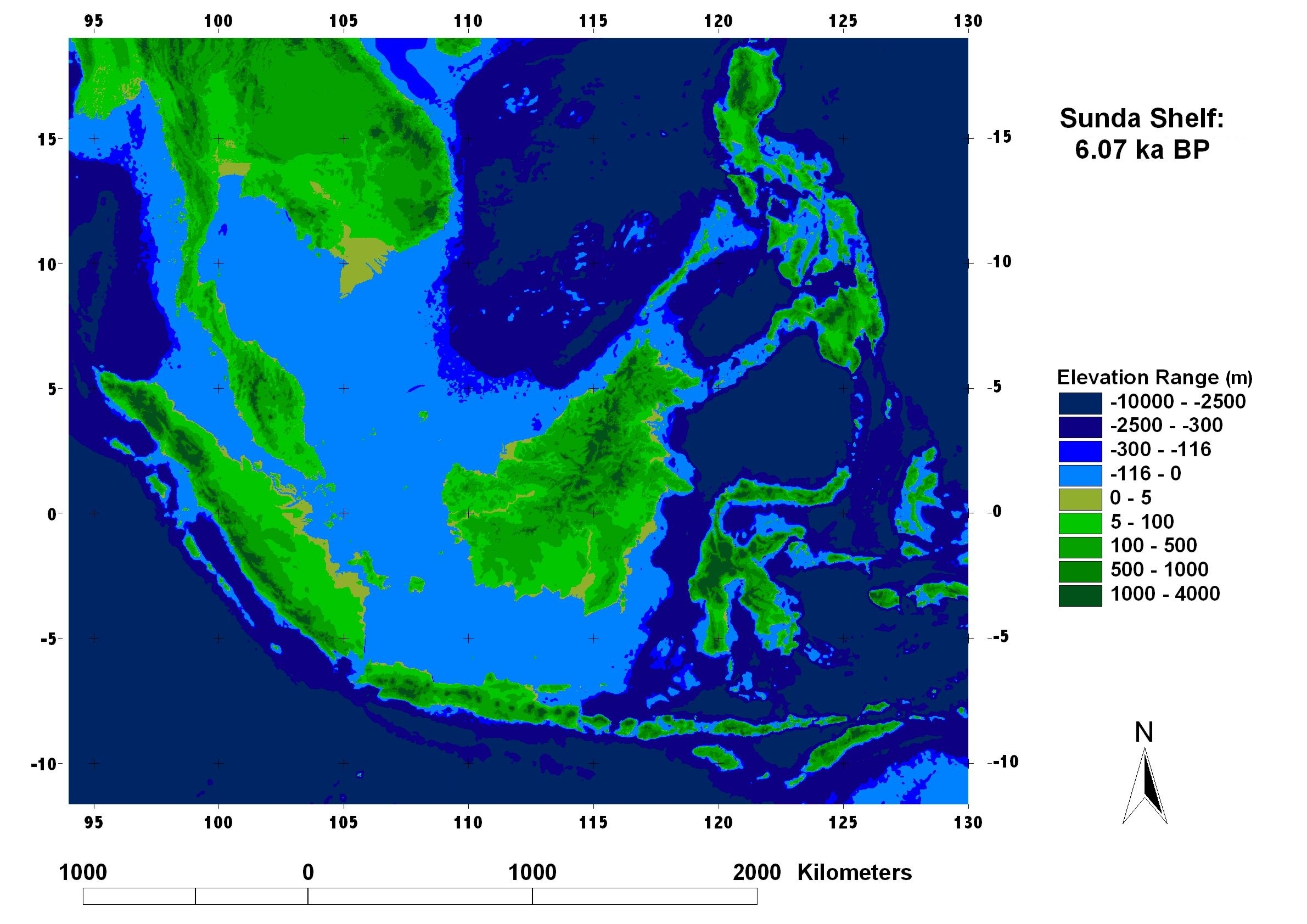

Figure 25      Sunda Shelf: 6.07 ka BP; -0 m below present-day sea level

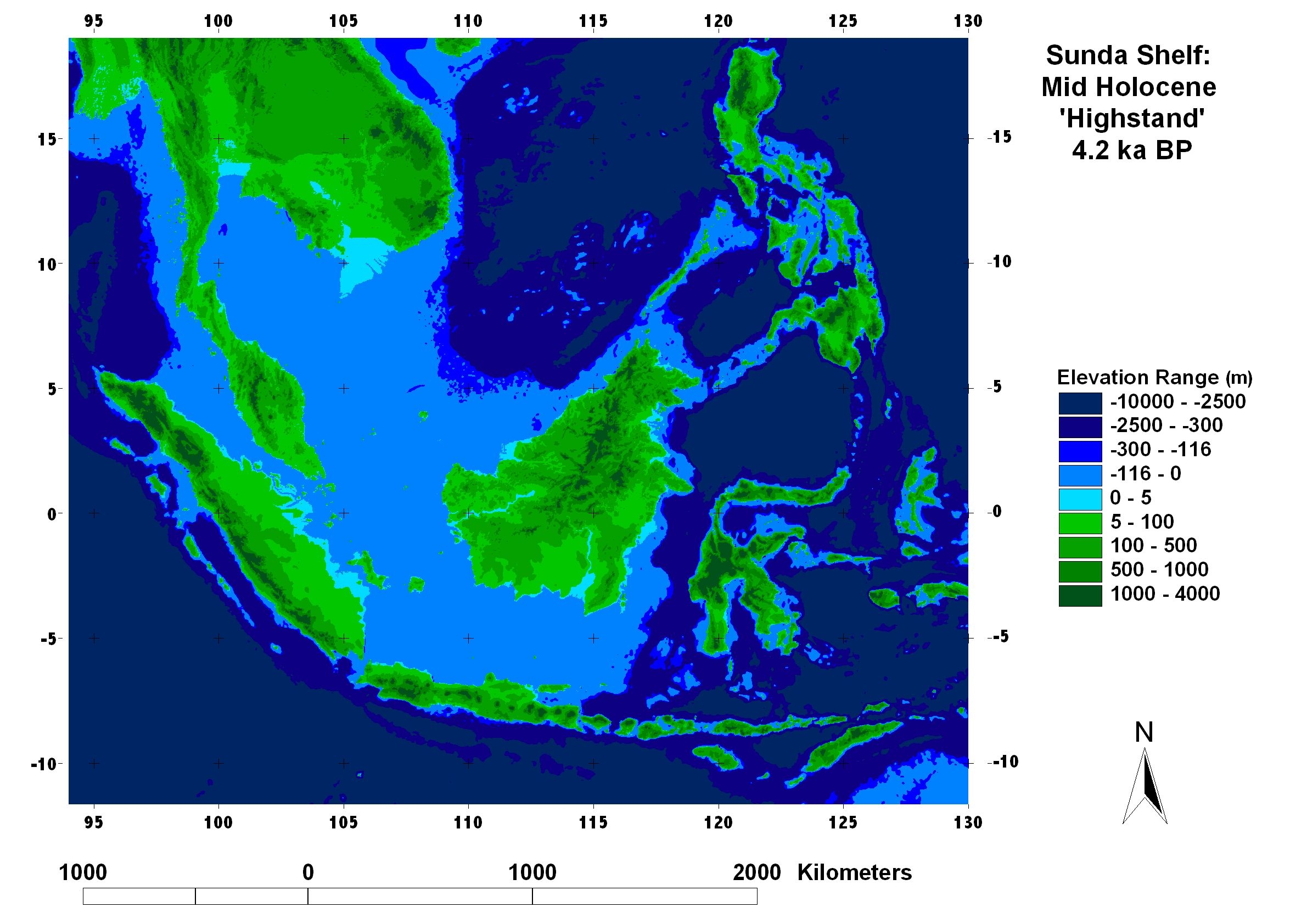

Figure 26      Sunda Shelf: Mid Holocene Highstand, 4.20 ka BP; +5 m above present-day sea level

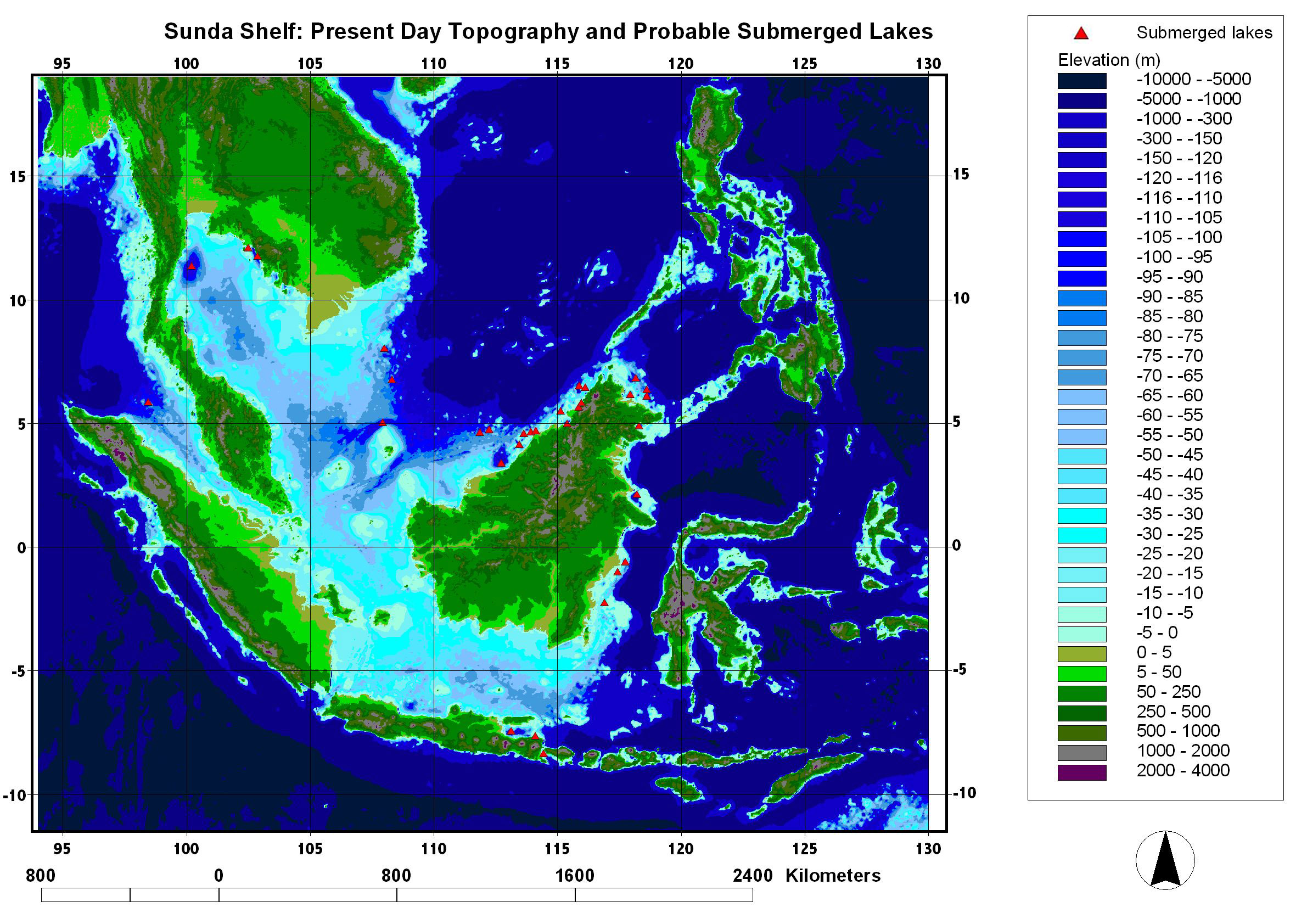

Figure 27      Sunda Shelf: Present day topography
